PEM 800 S

The newest high-tech PECM machine of PEM Technology is the PEM 800 S. It is more powerful, faster and more precise. With a higher weight and improved pulse rate the machine removes more material. This allows it to produce a larger number of workpieces in a shorter time. Therewith serial production becomes more economical.

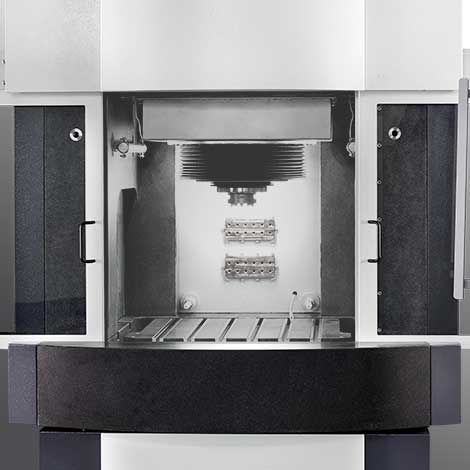

PEM 800 S
TECHNICAL DATA
  • Highly rigid high-precision working axes with central direct drive
  • Dynamic and individually programmable process profiles
  • HMI via 21.5“ touchscreen
  • Loading capacity of up to 15 kN
  • Real-time system for process control and short-circuit detection
  • Water-cooled, modular generator from 1,200 A to 12,000 A
  • Temperature compensation for the machine frame and process axis
  • Massive machine frame made from natural granite
  • Workspace 800 mm x 640 mm (W x D)
  • Machine bench 660 mm x 540 mm (W x D)
  • Device-mounting via 6 T-groove tracks (M10) in machine bench
  • Optional XY-adjusting aid, C-axis
  • Automatic electrolyte treatment system
PEM-800-Screen-Closeup
CONTROL UNIT

The input and control is via a touch screen operator interface developed by PEM Terchnologies. PEM CONTROL enables the customer to analyze the process online and evaluate the process.
